Lego Separatist Army – Unit Attack Craft

I’ve been working slowly on my Lego Separatist Droid Army to use against the Clone Army. Here is the first unit an APC. The design is primarily based on Lego set 7929 although that set is the Platoon Attack Craft (PAC) which holds 112 battle droids. This is more battle droids than I could ever use in Defiance as it’s a skirmish based game. The Lego model of the PAC only holds 8 Battle droids, again of little use to me as I’ve created the Separatist army so that it is 12 B1 Battle droids to a unit.

I had a hunt around Wookepedia to see if there were any canon Star Wars unit level Separatist Droid transports and unfortunately there are none. Oddly you can either transport 112 battle droids slowly using the PAC /MTT or one at a time quickly on a STAP. Seeing this obvious hole in the Separatist troop transport line up, I’ve designed my own unit based repulsa lift APC/carrier named the Unit Attack Craft (UAC). I stuck with the wonderfully exotic naming regime that the MTT and PAC uses.

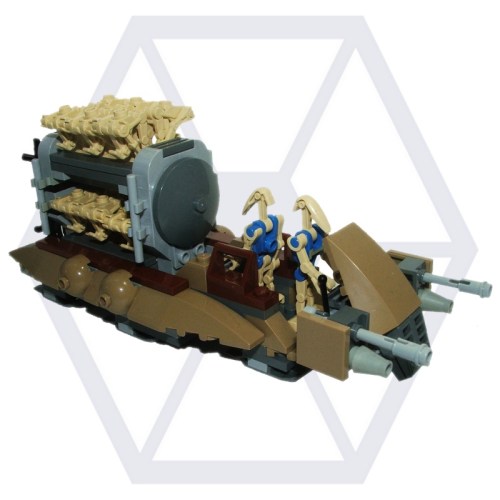

The UAC look is sort of cross between Lego set 7929 and Lego set 7126. I tried my best during the design phase to reuse as many elements from Lego set 7929 as I could, so as to limit the number of extra parts you need to have on hand. However due to the shortening of the chassis and droid carrier components and the addition of guns you do need some extra parts. The only drawback with the design is that I couldn’t quite fit 12 blaster rifles on the transport so only 8 are visible with 4 more carried in compartments along the side of the UAC, yes a cheat but a necessary one:

Just in case anyone else would like to use the UAC in wargaming or whatever here’s a little bit of unofficial fluff:

The UAC was designed by Baktoid Armor Workshop to fill the role as a rapid Battle droid carrier and delivery system. Unlike the lumbering MTT and PAC the UAC is fast moving with a top speed of 250kph enabling it to deliver troops quickly for re-enforcement or for the insertion/extraction of commando droids on a mission . The UAC carries twin linked light laser cannons and twin linked light blaster cannons which are primarily used to clean up any light troop resistance it might encounter on it’s way to it’s destination. The carrier is lightly armoured especially from the sides making it prone to anti vehicle weaponry and light arms fire. The crew consists of a pilot and a loader, both droids however can carry out the others function in case one is destroyed. The UAC can carry 12 B1 Battle Droids and there weaponry, with some re-configuration it can carry 12 B2 Battle Droids or 6 Destroyer Droids.

I put together a bit of an action picture/mockup as well, although it’s a little bland. It’s quite difficult to keep the focus on the subject and not clutter up the picture with unnecessary elements. The background of this image was taken by  Stuart Brabbs (Rolling Hills and is used under CC 2.0) and represents the rolling grasslands of Naboo with two UAC’s racing to re-enforce a pinned down Battle droid group.

I put some instructions together using MLCAD, they are the longest instructions (and largest 4mb download) I’ve ever assembled, however they are only A5 in size and hopefully easy to read. If you do build one don’t worry to much if you don’t have the exact colours needed any kind of black/gray parts should look okay. You can see in my prototype above I didn’t have enough light bluish gray clips for the Blaster racks and used black instead.

Instructions for Lego Unit Attack Craft (UAC)

Have fun and please leave a comment if you build a UAC .
